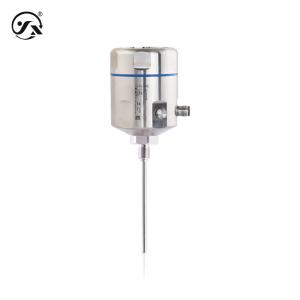

CWDZ11DY Universal Temperature Transmitter 4～20mA HART

Brand Name : star meter

Model Number : CWDZ11DY

Place of Origin : china

Range : -50～300℃ (see range parameter selection table for details)

Output : 4～20mA, 4～20mA HART, RS485

Power supply : 9～32VDC, 13～32VDC, 15～32VDC, 15～24VDC

Accuracy : 0.25%FS, 0.5%FS

Contact Now

CWDZ11DY general-purpose temperature transmitter is carefully designed, very suitable for general industry, a variety of interfaces and the combination of probe rods to achieve a different combination of effects. With intrinsically safe, dust intrinsically safe explosion-proof function and HART protocol communication options.

Measuring medium Liquid or gas, etc. (compatible with contact material)
Measuring range -50～300℃ (See range parameter selection table for details)
Measuring element 1*Pt100 (1/3B grade)
Response time Protection tube φ6mm≈18s, casing φ10mm≈36s (in accordance with IEC60751, 0.4m/s water flow, 10℃ step)
Stable performance ±0.1% FS/year
Explosion-proof type Intrinsically safe type Ex ia ⅡC T6 Ga (current output only)
Dust intrinsically safe type Ex ia IIIC T85℃Da (current output only)
Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Connection time 400ms
Protection level IP66 Note: The above protection level refers to the level achieved after the electrical connection is complete.
Accuracy level 0.25%FS, 0.5%FS Meter accuracy 0.05%FS (LCD with backlight)
Resolution Analog output 0.02%FS, digital output 0.1℃
Maximum Power ≤0.02Us(W)
Output power supply
4～20mA 15～32VDC, 15～24VDC (intrinsically safe)
RS485 9～32VDC
4～20mAHART 13~32VDC, 15~24VDC (intrinsically safe)
Load characteristics
Current Type No display load ≤ {(Us-7.5) ÷ 0.02} Ω
Display load ≤ {(Us-12) ÷ 0.02} Ω (Us = supply voltage)
HART Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40～85℃
Ambient humidity 0%～95%RH (no condensation, no condensation)
Overall material
Protection tube 304 stainless steel (contacting the measured medium)
Process connection 304 stainless steel (contacting the measured medium)
shell Die-cast aluminum
Display window ≈6mm explosion-proof glass
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms Comply with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output Limitation
4～20mA 2.5mA~26mA
RS485 0~3500/7000
4-20mAHART 3.8mA~22mA
